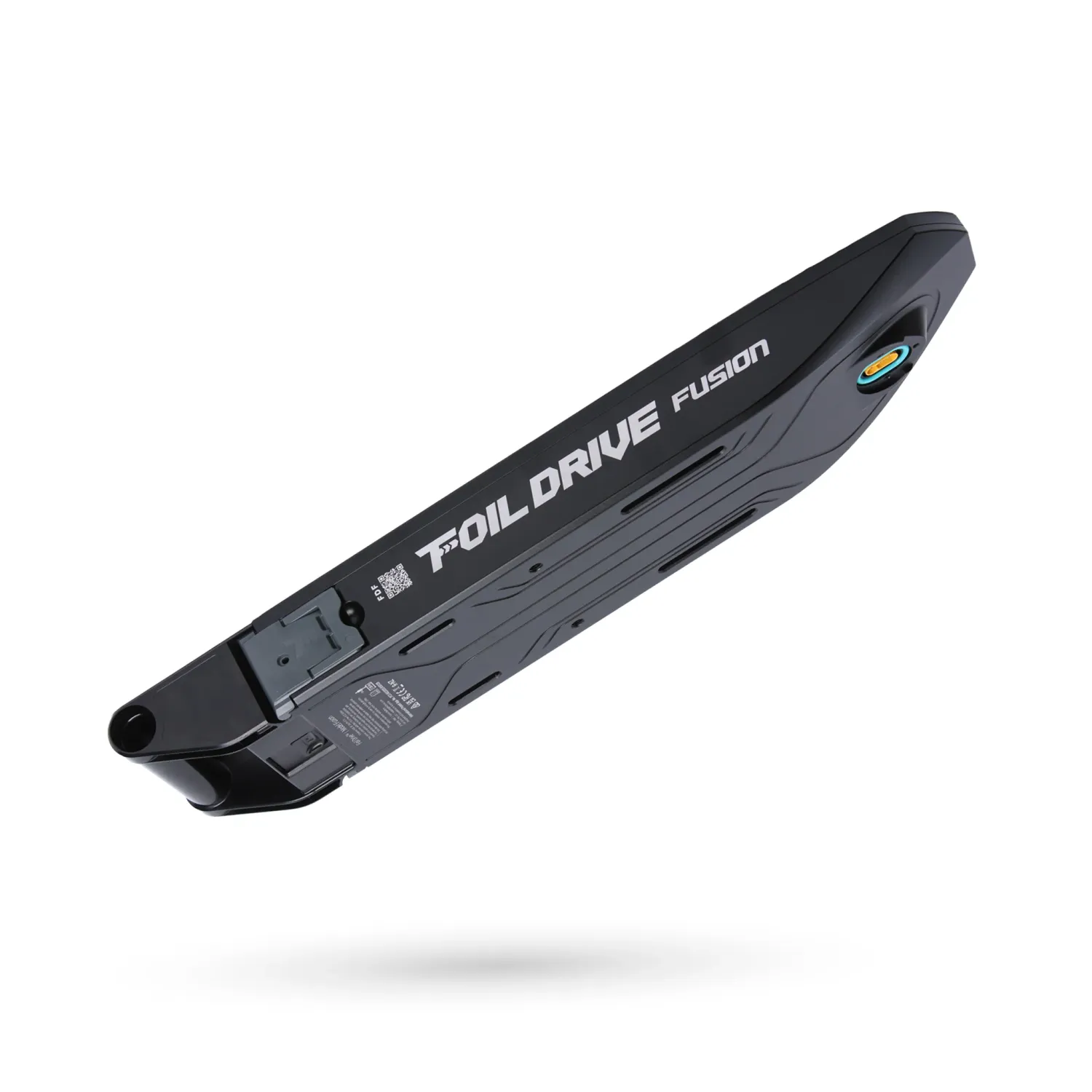

Foil Drive Fusion (Base Kit)
Product Details
With the
power and runtime of an Efoil, the
lightness and adaptability of an Assist,
the Fusion earns its name as the perfect blend of both worlds.
Key Features of the Fusion
• V3 Controller with GPS speed, distance, and session tracking
• Tilt Sensor (IMU) for automatic motor safety cutoff
• Robust one-piece battery with enhanced BMS and Bluetooth firmware
• 1.45-hour charging with storage mode options
• Slide-in tool caddy, titanium split bolts, and saltwater protection anodes
• Redesigned day-use and storage cases
• Battery Caddy that functions as a USB-A and USB-C power bank and storage discharger (Supplied with Battery)
Tech Specs
- System Nominal Voltage: 43.2V
- Battery Capacity Range: 864Wh
- Max Thrust: 34kg / 74.9lbs
- Power to Weight Ratio (Thrust/Weight): 4.35 N/KG
- Minimum Install Weight*: 7.8kg / 17.1lbs with Fusion 860 Battery
- Dimensions with Battery: L658 x W125 x H54mm
- App Compatibility: Foil Drive App, Android and IOS
- Water Rating: IP68 Water and Dust Resistance
WHAT'S INCLUDED
- Foil Drive Fusion (In Fusion Case)
V3 Controller with Bump Guard Installed
Universal Motor Pod
43V Standard Charger 12amp with selected AC Cable
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside Fusion)
4x Titanium T40 M7 Split Bolts Silver
1x Medium Sticker Pack
Controller Accessories Case
- Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal
Tools and Hardware
- 1x T40 Driver
- 1x T30 Driver
- 1x 2.5mm Black Titanium Driver
- 1x Pick Tool
- 2x 15g Battery Grease
- 2x Nose Cone Rocker Pads
- 3x M4 10mm Titanium Motor Plug Bolts
- 1x Anode Replacement Kit
- 1x Replacement Electronics Box O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Red)
- 1x Microfibre Towel
