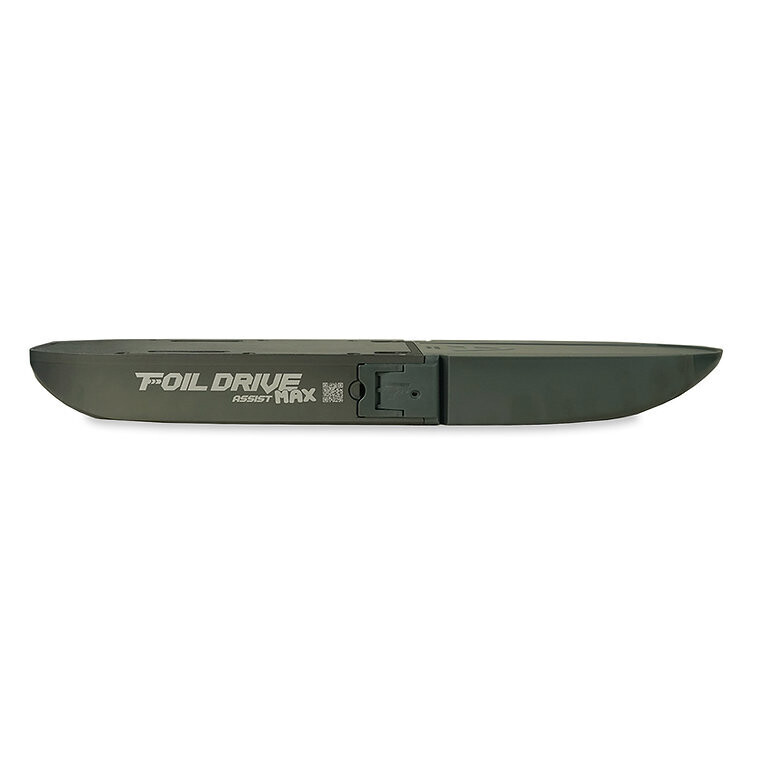

The Foil Drive Assist MAX is the flagship model with maximum power, runtime, thrust and versatility. Suitable for any rider at any skill level for just about any type of foiling you can imagine! The Assist MAX does it all!
Gen2 Foil Drive Systems mount between your mast plate and the board. As foil mast tracks are universal, this means it fit's any board! Simply use the provided locking T nuts and longer mast bolts. Sandwich your Gen2 Foil Drive between your gear for optimal weight distribution and a clean top board surface.
It doesn't matter if your surfing, down winding, Winging or in flat Water, the Assist Max is for everyone, however heavier riders and those wanting to just pull the trigger ang fly will love the extra run time and thrust.
Specs:
Maximum Thrust: 27.5kg with Three Blade Alloy Props
Weight Range: 3.4 - 4.5kg depending on battery
Dimensions: L415 x W250 x H50mm
Operating Voltage: 40V
Runtime (Generalised): 40min-4hrs depending on use case, battery and other variables.
Recharge Time: Appx. 2-3.5hrs (MAX Power Battery)
Batteries: IP68 rated dust and water resistant.
WHAT'S INCLUDED
- Foil Drive Assist MAX Base Kit
- Motor Plug Protector with Keychain
- Foil Drive Nose Cone A
- Foil Drive Nose Cone B
- Foil Drive Universal Motor Pod - Rear
- Foil Drive Universal Motor Pod - Short Nose
- Foil Drive Universal Motor Pod - Long Nose
- Foil Drive v2 Wireless Throttle Controller
- Foil Drive Controller Wrist Strap
- Foil Drive Mast Cable Guide 23cm
- Foil Drive Controller Wireless Charge Pad
- Micro USB Cable
- 40v Standard Foil Drive Charger 4amp
- 4x Mast Track Foam Inserts
- 2x Nose Cone Rocker Pad
- 2x Battery Grease
- 4x M8 Assist MAX Mast Plate Bolts 80mm
- 4x M6 Assist MAX Mast Plate Bolts 80mm
- Foil Drive 2.5mm Driver
- Torx T40 Tee Handle Driver
- Torx T30 Tee Handle Driver
- Foil Drive Cleaning Cloth
- Foil Drive Gen2 Carry Case
- Foil Drive Mounting Bolt Bag
- - 4x M8 Locking Tee Nuts
- - 4x M6 Locking Tee Nuts
- - 4x M3 x 20mm Bolts for Locking Tee Nuts
- - 2x M3 x 16mm Latch Locking Bolts
Foil Drive Motor and Pod Bolts Bag
- - 4x Motor Pod Bolts (M3 x 12mm)
- - 4x Puck Bolts (M4 x 16mm)
- - 3x Motor Plug Bolts (M4 x 10mm)
Spare Parts Bag
- - 2x O-Ring Seals - Foil Drive Assist MAX
- - 2x Latch Assembly - Foil Drive Assist MAX
- - 3x Motor Plug Bolts (M3 x 12mm)
- - 4x Motor Pod Bolts/Puck Bolts (M4 x 16mm)
- - 2x Latch Locking Bolts (M3 x 16mm)
- - 2x Propeller Bolts (M3 x 30mm)
- - 2x Latch Pivot Bolts (M3 x 45mm)
